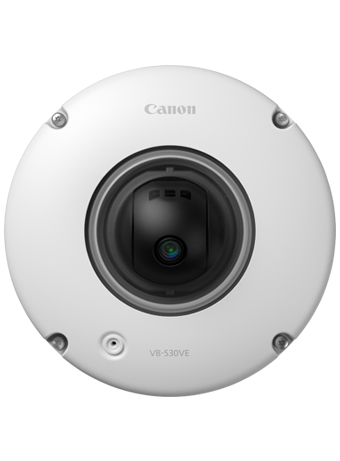

Canon VB-S30VE


An easy-to-install weatherproof and vandal-resistant compact PTZ camera featuring a bright zoom lens and a built-in microphone to add new layers of detail.



    • Capture everything with the VB-S30VE's bright f/1.4-2.6 lens, pan, tilt and zoom functions and superb low-light performance
    • Full HD imaging and 3.5x optical zoom with low-distortion aspherical lens elements for pin-sharp images
    • Record clear, high-quality audio with the built-in omni-directional microphone
    • Lightweight, compact and easy to install with IK10 impact and IP66 weatherproof protection
    • Motion Adaptive Noise Reduction and Area-specific Data Size Reduction (ADSR) maintain video quality while reducing data size
    • Intelligent on-board analytics functions for advanced alarm detection
    • Live monitoring and management from a broad range of supported web browsers and mobile devices
    • ONVIF® Profile S compliant

Specificaţii detaliate

Aflaţi informaţii mai detaliate despre Canon VB-S30VE

Full HD imaging

See more detail with the Canon VB-S30VE's 3.5x optical zoom lens, 2.1 MP Full HD imaging, 1/3" CMOS sensor, accurate aspherical lens elements and enhanced minimum subject illumination for superior low-light performance. To optimise image quality and control data usage, Motion Adaptive Noise Reduction dynamically controls noise reduction levels when detecting moving objects or when experiencing digital noise caused by low-light conditions.

See more, hear more

The VB-S30VE can monitor much more than just images. Its built-in omni-directional microphone adds a new layer of high-quality information by recording speech up to a distance of 4 metres, all while filtering out background noise and unwanted echo. The microphone also provides audio alarm trigger functions, so the camera can be configured to begin recording when sound is detected.

Easy to install and manage

Light, compact and durable, the VB-S30VE is also quick and simple to install, keeping project costs to a minimum. The included 1-metre pigtail cable provides easy and direct access to an array of camera connections, and Canon's Camera Management Tool offers powerful setup and management functions for individual or selected groups of cameras. Conduit box fittings and a pendent mount are also available, offering further installation options.

Vandal- and weather-resistant

The VB-S30VE is designed to last. Both vandal- and weather-resistant, it is weatherproof to IP66 standards, certified impact resistant to IK10 and remains fully operational at temperatures ranging from -25˚C up to 50˚C.

Intelligent alarm detection

With 15 on-board Video Content Analytics profiles, camera operators can conduct surveillance tasks efficiently and effectively. Intelligent analytics provide multiple virtual alarm detection functions, actively alerting operators to suspicious behaviour while helping to minimise

Specificaţiile produsului

Aflaţi mai multe despre Canon VB-S30VE, despre funcţiile şi capabilităţile sale.

Digic DV III

Gestionează calitatea şi controlul imaginilor


Procesare eficientă în reţea

Optical 3.5x zoom

Mărire optică de înaltă calitate

Digital 4x zoom

Capacităţi extinse de zoom


Panoramare Înclinare Zoom

Full HD

Rezoluţie Full HD

Auto SSC

Controlul automat inteligent al umbrelor

Intelligent Function

Analiza conţinutului video


Înregistrare la sursă

Simple Camera Setting

Configurare printr-un clic


Protecţie certificată la vandalism


Rezistenţă la intemperii

  • Unitate principală VB-S30VE
  • CD-ROM de configurare
  • Ghid de instalare
  • Cheie fixă
  • Cuplaj RJ45
  • Cablu de interfaţă I/O
  • Fir de siguranţă
  • Broşură de garanţie
