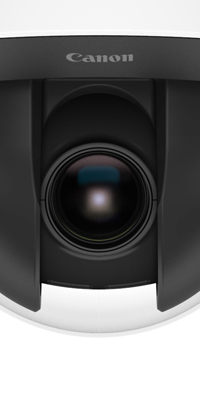

Canon VB-R10VE


Keep every outdoor angle covered


    • Excellent subject tracking with continuous panning & Auto-Flip
    • Versatile monitoring with superb low light performance
    • Fast, accurate and intelligent with precise control
    • Outdoor-ready with vandal and environmental protection
    • Extreme low temperature start up and operation

Specificaţii detaliate

Aflaţi informaţii mai detaliate despre Canon VB-R10VE

Excellent subject tracking with continuous panning & Auto Flip

The VB-R10VE effortlessly delivers high quality, detailed 1.3 MP images for live monitoring and recording. Continuous 360° panning and Auto-Flip let operators keep subjects in view without changing their handling perspective, while intelligent Auto-Tracking allow them to attain and track their target virtually hands-free.

Versatile monitoring with superb low light performance

Zoom-in to far away subjects and monitor wider areas using the powerful 30x optical zoom lens with a wide 58.4° angle of view. The bright IR Corrected and wide f/1.4-4.6 aperture High UD lens provides clean sharp images day or night and offers improved low light performance. Minimum subject illumination is 0.03 lux (colour) to 0.002 lux (mono). Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed. Image enhancing Haze Compensation automatically adjusts image contrast to make environments with fog, haze or smog easier to see. It can also bring distant scenes captured at high zoom into clearer view.

Fast, accurate and intelligent with precise control

Effectively track fast moving subjects with a highly accurate and responsive 450°per second Pan/Tilt mechanism, which offers faster panning, quicker acceleration and more precise stopping accuracy. A wide range of intelligent detection functions can automatically alert operators to alarming situations and activate recording. These include additional Intruder Detection, which identifies moving objects entering a specified area.

Outdoor-ready with vandal and environmental protection

The VB-R10VE is fully outdoor ready and vandal resistant. It offers IK10 shock resistance certification as well as IP66 certification for extensive weatherproofing. Its robust construction and innovative design means that it is also co

Specificaţiile produsului

Aflaţi mai multe despre Canon VB-R10VE, despre funcţiile şi capabilităţile sale.


Procesare eficientă în reţea

Digic DV III

Gestionează calitatea şi controlul imaginilor

1.3 Mega Pixel

Imagini de înaltă calitate


Panoramare Înclinare Zoom


Rotaţie continuă

Auto Tracking

Urmărirea subiecţilor fără ajutorul mâinilor


Protecţie certificată la vandalism

Drag to move

Control PTZ uşor

Area zoom

Detectare uşoară

Preset Tours

Patrulare automată

All weather Model

Izolaţie extinsă la intemperii

Auto DayNight

Filtru IR demontabil

Intelligent Function

Analiza conţinutului video

Intrusion Detection

Protecţie zonă

PoE plus

Alimentare prin Ethernet


Control suplimentar al lărgimii de bandă

SD Card

Înregistrare la sursă


Gestionare pentru camere multiple

  • Unitate principală VB-R10VE
  • CD-ROM de configurare
  • Cablu de interfaţă de alimentare
  • Cablu de interfaţă I/O
  • Cheie fixă
  • Ghid de instalare
  • Card de garanţie
  • Broşură cu cardul de garanţie
  • Materiale de ambalare

Calculator cu unghi de vizualizare (AOV)

Calculator spaţiu necesar pe disc (RDS)

Simulator de configuraţie a camerei (CLS)
