Canon VB-M741LE

VB-M741LE

Keep every outdoor angle covered

Beneficii

    • A fully featured IR bullet camera for high quality images day or night
    • See in zero light with inbuilt IR illumination plus ultra wide coverage
    • Outdoor-ready with additional environmental protection
    • Extreme low temperature start up and operation
    • Easy installation with remote set up, and simple cable connections

Specificaţii detaliate

Aflaţi informaţii mai detaliate despre Canon VB-M741LE

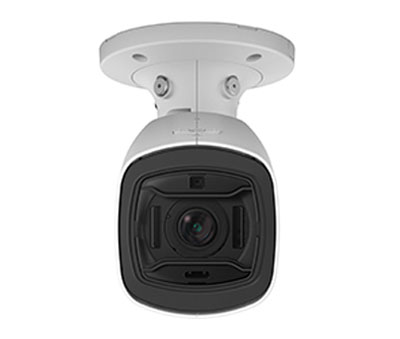

A fully featured IR bullet camera delivering high quality images day or night


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. The VB-M741LE also features built-in Infrared LED illumination to provide up to 30m coverage in total darkness. Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed.

See in zero light with inbuilt IR illumination plus ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 113.4° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001 lux (mono). Haze Compensation automatically adjusts image contrast to make environments with fog, haze or smog easier to see.

Easy installation with remote set up and simple cable connections


The VB-M741LE features a simple pigtail cable connection and PTRZ support to help reduce installation times and cost. Connections include Audio and Alarm inputs and operators can easily identify alarming situations thanks to a wide range of inbuilt intelligent detection functions, which can automatically activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells.

Outdoor-ready with additional environmental protection


The VB-M741LE is fully outdoor ready with extensive weatherproofing and environmental protection. Its robust construction and innovative design means that it is also compliant with NEMA250 Type4X and IEC 60950-1/22 st

Specificaţiile produsului

Aflaţi mai multe despre Canon VB-M741LE, despre funcţiile şi capabilităţile sale.

DIGIC NET II

Procesare eficientă în reţea

Digic DV III

Gestionează calitatea şi controlul imaginilor

1.3 Mega Pixel

Imagini de înaltă calitate

All weather Model

Izolaţie extinsă la intemperii

Auto DayNight

Filtru IR demontabil

Intelligent Function

Analiza conţinutului video

Intrusion Detection

Protecţie zonă

Scream Detection

Detectare sunet

PoE plus

Alimentare prin Ethernet

ADSR

Control suplimentar al lărgimii de bandă

Linked Event

Alarme condiţionate

SD Card

Înregistrare la sursă

CCMT

Gestionare pentru camere multiple

Infrared Illumination

sursă de iluminare integrată

<ul> <li>Unitate principală VB-M741LE <br /></li> <li>CD-ROM de configurare <br /></li> <li>Cablu de siguranţă şi şurub de fixare <br /></li> <li>Placă de plafon şi şuruburi de fixare <br /></li> <li>Cheie fixă <br /></li> <li>Şablon <br /></li> <li>Cablu de interfaţă de alimentare <br /></li> <li>Cablu de interfaţă I/O <br /></li> <li>Ghid de instalare <br /></li> <li>Card de garanţie <br /></li> <li>Broşură cu cardul de garanţie <br /></li> <li>Ambalaje</li> </ul>

Calculator cu unghi de vizualizare (AOV)

Calculator spaţiu necesar pe disc (RDS)

Simulator de configuraţie a camerei (CLS)
