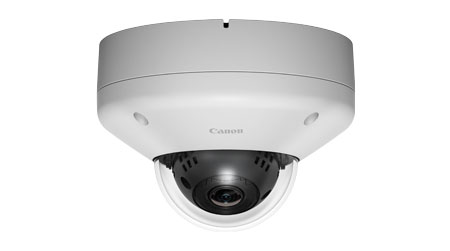

Canon VB-M641VE

VB-M641VE

Keep every outdoor angle covered

VB-M641VE

Beneficii

    • High quality images day or night with 1.3 MP resolution
    • Superb low light performance and ultra wide coverage
    • Outdoor-ready with vandal and environmental protection
    • Extreme low start up temperature and operation
    • Easy installation plus enhanced intelligent detection

Specificaţii detaliate

Aflaţi informaţii mai detaliate despre Canon VB-M641VE

High quality images day or night with 1.3 MP resolution


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but it also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Easy installation plus enhanced intelligent detection


The VB-M641VE features a simple pigtail cable connection and PTRZ remote set up, for easy configuration and modification of camera angles from a PC, to help reduce installation times and cost. Connections include Audio and Alarm inputs and operators can easily identify alarming situations thanks to a range of inbuilt intelligent detection functions, which can automatically activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells.

Outdoor-ready with vandal and environmental protection


The VB-M641VE is fully outdoor ready and vandal resistant. It offers IK10 shock resistance certification as well as IP66 certification for extensive weatherproofing and environmental protection. Its robust construction and innovative design is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, m

Specificaţiile produsului

Aflaţi mai multe despre Canon VB-M641VE, despre funcţiile şi capabilităţile sale.

DIGIC NET II

Procesare eficientă în reţea

Digic DV III

Gestionează calitatea şi controlul imaginilor

1.3 Mega Pixel

Imagini de înaltă calitate

IK10

Protecţie certificată la vandalism

All weather Model

Izolaţie extinsă la intemperii

Auto DayNight

Filtru IR demontabil

Intelligent Function

Analiza conţinutului video

Intrusion Detection

Protecţie zonă

Scream Detection

Detectare sunet

Power over Ethernet

Alimentare prin Ethernet

ADSR

Control suplimentar al lărgimii de bandă

Linked Event

Alarme condiţionate

SD Card

Înregistrare la sursă

CCMT

Gestionare pentru camere multiple

  • Unitate principală VB-M641VE
  • CD-ROM de configurare
  • Placă de plafon
  • Şurub de fixare
  • Cablu de siguranţă şi şurub de fixare
  • Cheie fixă
  • Şablon
  • Cablu de interfaţă de alimentare
  • Cablu de interfaţă I/O
  • Ghid de instalare
  • Card de garanţie
  • Broşură cu cardul de garanţie
  • Ambalaje
