Canon VB-M641V

VB-M641V

Keep every angle covered

VB-M641V

Beneficii

    • High quality images day or night with 1.3 MP resolution
    • Superb low light performance and ultra wide coverage
    • Quick and easy installation with simple connections
    • Additional Intelligent Intruder and Scream detection
    • Enhanced bandwidth management and bit rate control

Specificaţii detaliate

Aflaţi informaţii mai detaliate despre Canon VB-M641V

High quality images day or night with 1.3 MP resolution

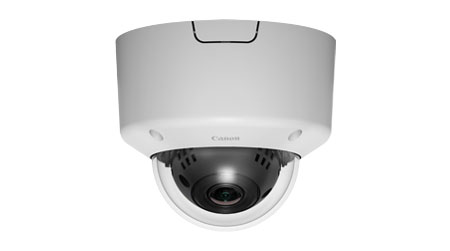

The compact VB-M641V is an IK10 vandal-resistant Fixed Dome camera that effortlessly captures everything in high quality 1.3 MP images day or night. Designed for indoor installation in a wide range of environments it features a Super-UD lens that provides maximum IR support and true Day and Night switching.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Quick and easy installation with simple connections


The VB-M641V offers reduced installation times and cost thanks to an improved PTRZ lens mechanism with increased shock and vibration resistance, which allows quick and easy remote set up of camera angles from a PC. The camera also includes support for Audio and Alarm inputs and outputs for greater versatility.

Enhanced bandwidth and bit rate control


Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ASDR allows you to set the pre-configured image quality to 8 distinct areas within the field of view to lower the cameras H.264 bit rate.

Additional intelligent intruder and scream detection


The Industry leading range of inbuilt analytics functions, which can automatically alert operators to alarming situations and activate recording, has been enhanced with the addition of Intruder and Scream detection. Intruder Dete

Specificaţiile produsului

Aflaţi mai multe despre Canon VB-M641V, despre funcţiile şi capabilităţile sale.

DIGIC NET II

Procesare eficientă în reţea

Digic DV III

Gestionează calitatea şi controlul imaginilor

1.3 Mega Pixel

Imagini de înaltă calitate

IK10

Protecţie certificată la vandalism

Auto DayNight

Filtru IR demontabil

Intelligent Function

Analiza conţinutului video

Intrusion Detection

Protecţie zonă

Scream Detection

Detectare sunet

Power over Ethernet

Alimentare prin Ethernet

ADSR

Control suplimentar al lărgimii de bandă

Linked Event

Alarme condiţionate

microSD

Înregistrare la sursă

CCMT

Gestionare pentru camere multiple

<ul> <li>Unitate principală VB-M641V <br /></li> <li>CD-ROM de configurare <br /></li> <li>Placă de plafon <br /></li> <li>Şuruburi de fixare <br /></li> <li>Cablu de siguranţă şi şurub de fixare <br /></li> <li>Cheie fixă <br /></li> <li>Şablon <br /></li> <li>Conector de alimentare <br /></li> <li>Cablu de interfaţă audio <br /></li> <li>Ghid de instalare <br /></li> <li>Card de garanţie <br /></li> <li>Broşură cu cardul de garanţie <br /></li> <li>Ambalaje</li> </ul>
