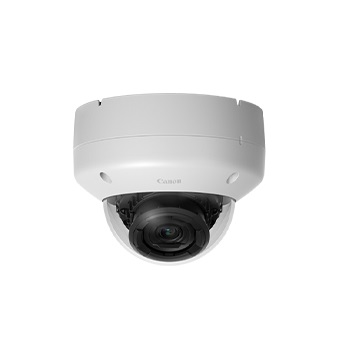

Canon VB-H652LVE


Full HD dome camera with an ultra-wide 122.1° field of view, bright f/1.2-1.8 lens, IK10 and IP66 vandal- and weather-resistance, plus built-in infrared LEDs for detailed mono image capture up to 20m away.



  • See more of the scene with the VB-H652LVE's ultra wide-angle lens
  • Vandal-resistant, weather-resistant, and NEMA250 Type 4X compliance for extensive protection against the elements
  • Built-in infrared LEDs for around-the-clock monitoring
  • Motion Adaptive Noise Reduction and Area-Specific Data Size Reduction (ADSR) maintain video quality while reducing bandwidth usage
  • On-board analytics functions for advanced alarm detection
  • Live monitoring and configuration on supported web browsers and mobile devices
  • Supports ONVIF® Profile S and Profile G

Specificaţii detaliate

Aflaţi informaţii mai detaliate despre Canon VB-H652LVE

Sharp, wide-angle images in Full HD

Get a more complete view with the VB-H652LVE's 122.1° wide-angle field of view and sensitive 1/3" CMOS sensor, producing Full HD-resolution images using the camera's bright f/1.2-1.8 lens. The aspherical lens elements and Super UD-distortion suppression help prevent chromatic aberration and achieve even crisper images under any lighting conditions. To improve bandwidth requirements and optimise image quality, Motion Adaptive Noise Reduction dynamically controls noise reduction levels when detecting moving objects or low-light noise.

Infrared LEDs for high-quality images even in darkness

Surveillance can continue around the clock, from bright daylight to virtual darkness. In low-light, the VB-H652LVE's f/1.2-1.8 2.4x optical zoom lens captures outstanding levels of detail, and in extreme low-light conditions the built-in infrared LEDs provide a clear, focused view of subjects up to 20m away.

Built to beat the elements

The VB-H652LVE is built to last. Both vandal- and weather-resistant, it is ingress rated to IP66 and certified for IK10 impact resistance. Its design and construction also comply with NEMA250 Type 4X and IEC 60950-1/22 standards to provide reliable operation in extreme temperatures, from -40°C (using the optional heater) up to 55°C.

Content-aware alarm detection

With on-board Video Content Analytics profiles, operators can conduct surveillance tasks efficiently and effectively. Intelligent analytics provide multiple virtual alarm detection functions, actively alerting operators to suspicious behaviour while helping to minimise storage and bandwidth re

Specificaţiile produsului

Aflaţi mai multe despre Canon VB-H652LVE, despre funcţiile şi capabilităţile sale.

Digic DV III

Gestionează calitatea şi controlul imaginilor


Procesare eficientă în reţea

Optical 2.4x Zoom

Mărire optică de înaltă calitate

Horizontal view angle 122.1 degree

Unghi de vizualizare grandangular

Full HD

Rezoluţie Full HD

All weather Model

Izolaţie extinsă la intemperii

Infrared Illumination

sursă de iluminare integrată

Auto SSC

Controlul automat inteligent al umbrelor

Intelligent Function

Analiza conţinutului video

Simple Camera Setting

Configurare printr-un clic

Digital PTZ

Funcţionalitate PTZ virtual


Protecţie certificată la vandalism


Rezistenţă la intemperii


Opţiuni multiple de alimentare

PoE plus

Alimentare prin Ethernet


Înregistrare la sursă

  • Unitate principală VB-H652LVE
  • CD-ROM de configurare
  • Placă de plafon
  • Fir de siguranţă
  • Şurub de fixare cablu de siguranţă
  • Cheie fixă
  • Şablon
  • Conector de alimentare
  • Cablu de interfaţă audio
  • Ghid de instalare
  • Card de garanţie
  • Broşură cu cardul de garanţie
